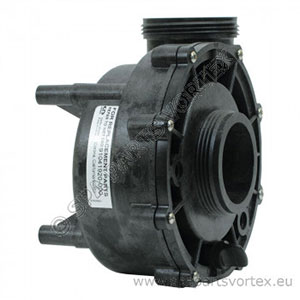

Aqua-flo XP2e 2.0HP 56f (6.3) Wet End Assembly (2x2)
Precio: 174,17 € ex. IVA
Codigo del articulo: PW-AF520
Estado del stock en tiempo real: 26 disponible, 2 - 5 dias de entrega
| Type of Product: | Wet end assembly |
| Manufacturer: | Gecko / Aqua-flo |
| Connections: | 2 inch Waterway or Aqua-flo unions. Both suction and pressure have a flat smooth connection meaning that the o'ring would be attached to the union sleeve. The wet end fixes to the pump body with 4 x small bolts, this part holds the female receptacle part of this attachment. The impellor is screwed on to the shaft which protrudes from the centre of the pump body. |
| Dimensions: | Length: 200 mm Width: 185 mm (main face diameter not screw holes) Depth: 140 mm |
| Commonly Used With : | |
| Additional Notes: |
Does not fit the older, smooth body Emerson 56 (6.1") frame pumps. Will fit the newer fin-type bodied pumps. This unit includes the housing, the face plate, the face plate o-ring, the 2.0hp impellor and the ceramic seal kit. This unit also includes a built in bleed screw. The space between the impellor plates is 10mm |
