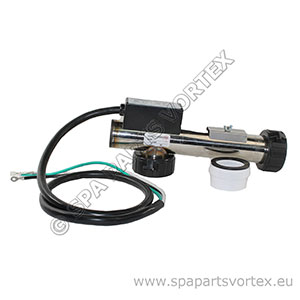

3.6kW Straight Tee Heater
Precio: 480,68 € ex. IVA
Codigo del articulo: HT-AC137
Estado del stock en tiempo real: 1 disponible, 2 - 5 dias de entrega
| Type of Product: | Heater assembly |
| Manufacturer: | Straight tee style, has also been made by Thermocore. RMF Related Heater 3.6kw. Part: A2360-5350ET, Serial: 88243-0911-009 |
| Power: | Volts: 230 Hz: 50 KW: 3.6 Amps: 13.5-14.5 HP: |
| Specifications: | Sensor compatibility: Works with Gecko sensors supplied with an Arctic Spa but can be modified Material spec: Required flow rate: Set by pressure switch Flow detection: Pressure switch |
| Compatible With: | This is not an official Arctic Spa heater but will replace the heaters in Models: Cub, Fox, Glacier, Yukon, Frontier, Summit, Klondiker, Kodiac, Tundra 2002 - 2005. This unit will also work with newer models 2005 - 2007 as the pipework is flexible and can be easily re-positioned. |
| Connections & Fixings: | This is a remote heater that connects to the control system connected directly to the PCB via 3 wires black green and white, the older style had a grey 5-pin JJ cord. You will need to re-connect the pressure switch and also slide the hi-limit sensor back into the little pocket provided. The union connections are industry standard 2 inch female MPT screw thread connection. |
| Dimensions: | Length: 326 mm Diameter: 54 mm Between terminals: N/A Overall length complete: 350 mm |
| Additional Notes: | If your heater looks the same as this one and it's on an Arctic then this is the one you need. Contact us if you need further help. |
